APS001-A Series

  • APS001-A Series
  • APS001-A Series
  • APS001-A Series
  • APS001-A Series
  • APS001-A Series
APS001-A Series close left right
产品介绍

Type

Three-plug water level sensor

Character

Double capacitor  Three-plug

Structural description

Without mounting bracket

Operating Voltage

DC5V

Environment

-10℃-50℃

Water level range

0-600mm Water column



Technical parameters

1. Smooth appearance, uniform color

2.  Nominal voltage :DC5.0±0.1V

3. Water level:customizable

4. Inlet strength:Apply force 49N/min, no air leakage

5. Air impermeability:Apply water pressure of 7.5kpa for 1min without air leakage

6. Destructive water pressure :≥ 1000nm

7. Voltage withstandatility:Apply 1500V/ sec, no breakdown

8. Insulation resistance:>20 megohm

9. Durability test:Each minute 20 times, the water level in 550mm action 50000 times, the water level changes in the 15mm below

10. The experiment of damp and hot:  Apply 1200 v/min, no breakdown under the condition of 40±3℃ and 95% relative humidity for 48 hours.

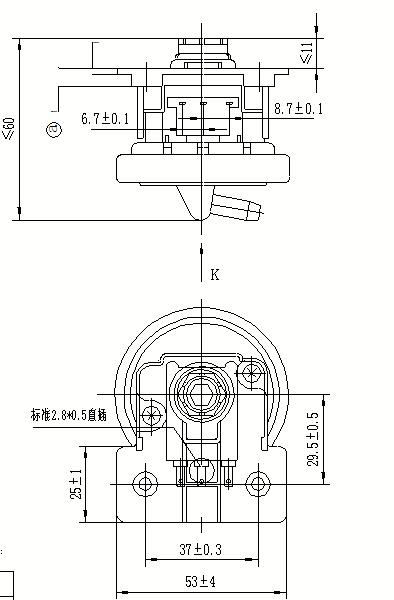

Installation dimension
