APS001-C Series-Sensor-Anhui Sherko Intellectual Electrical Technology Co., Ltd

Product Introduction

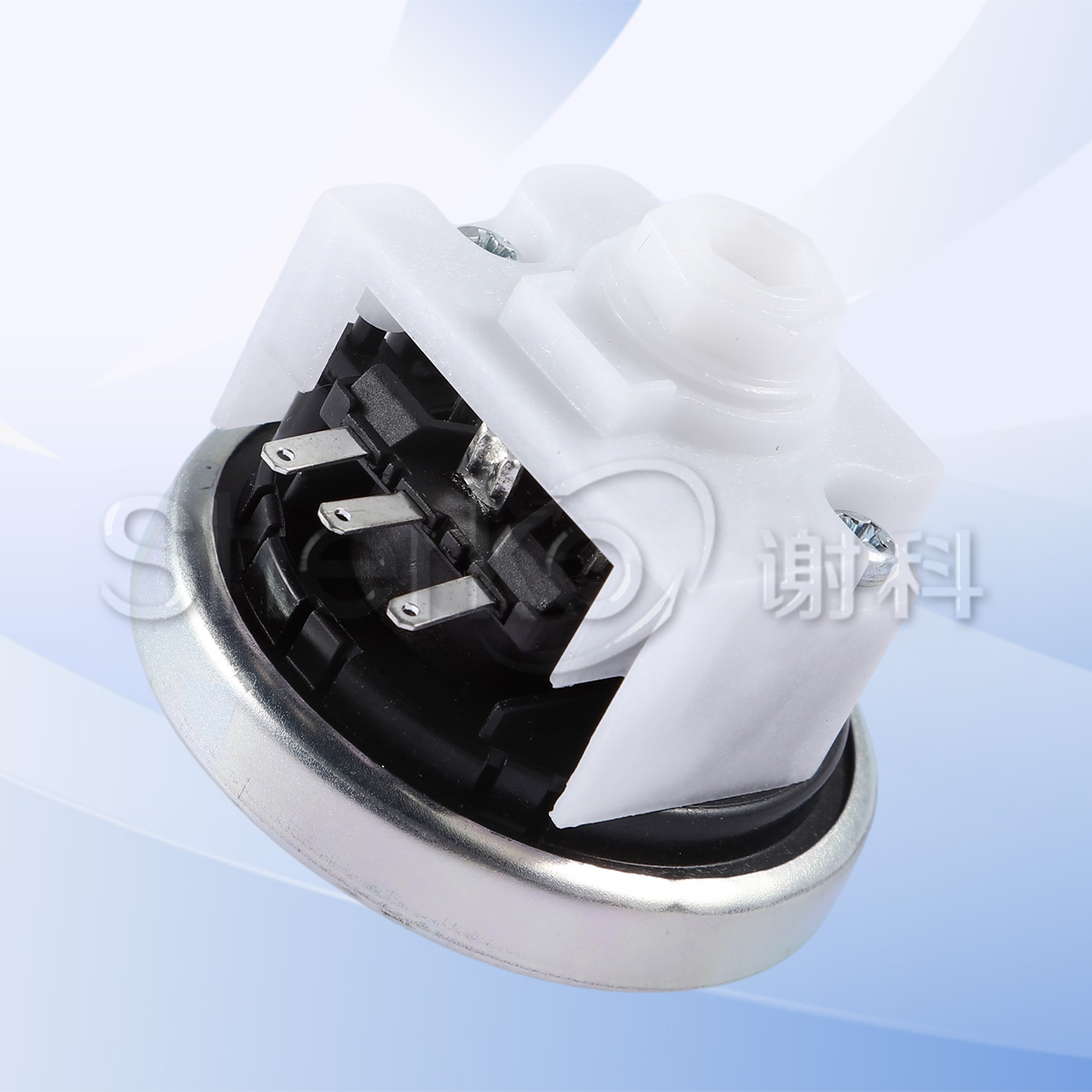

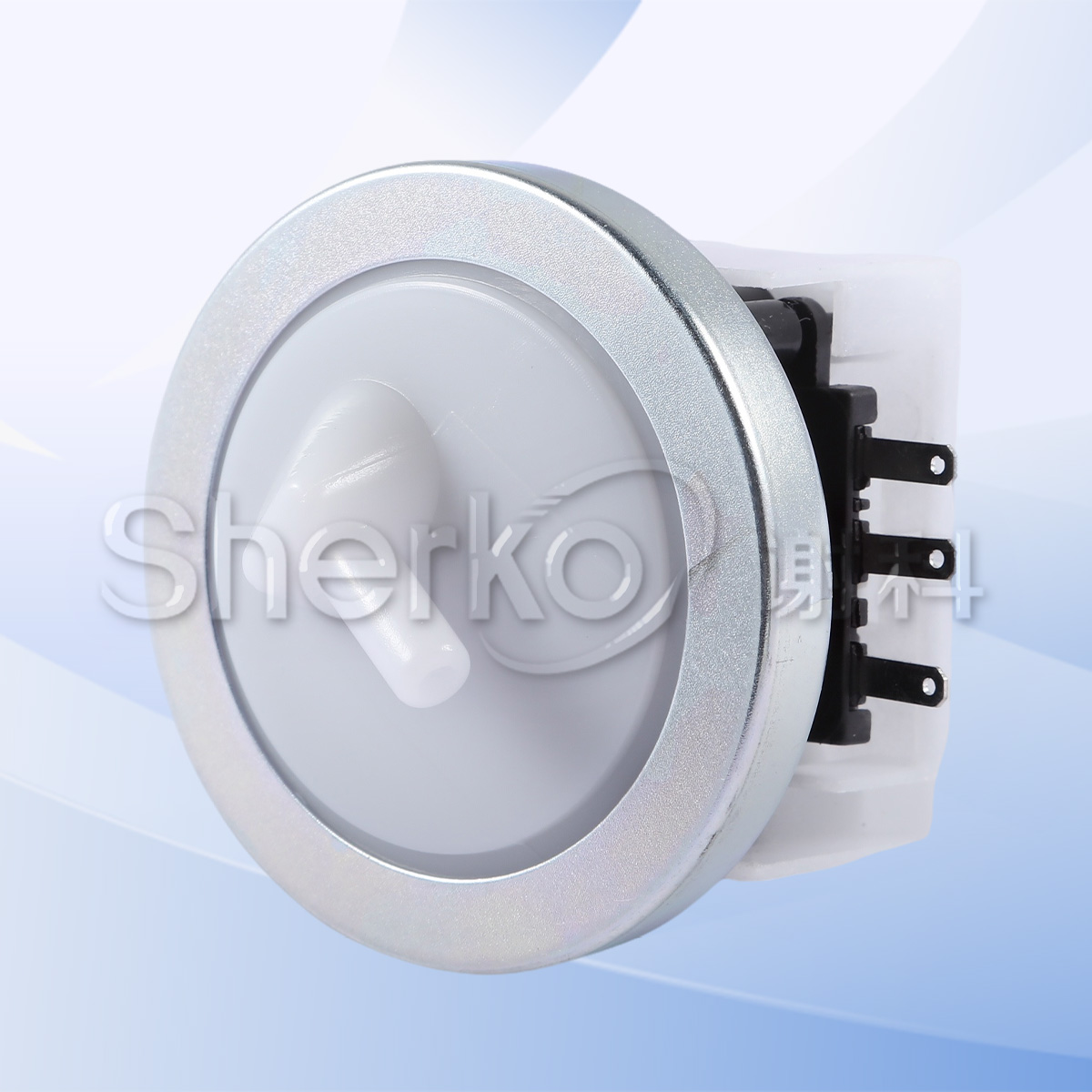

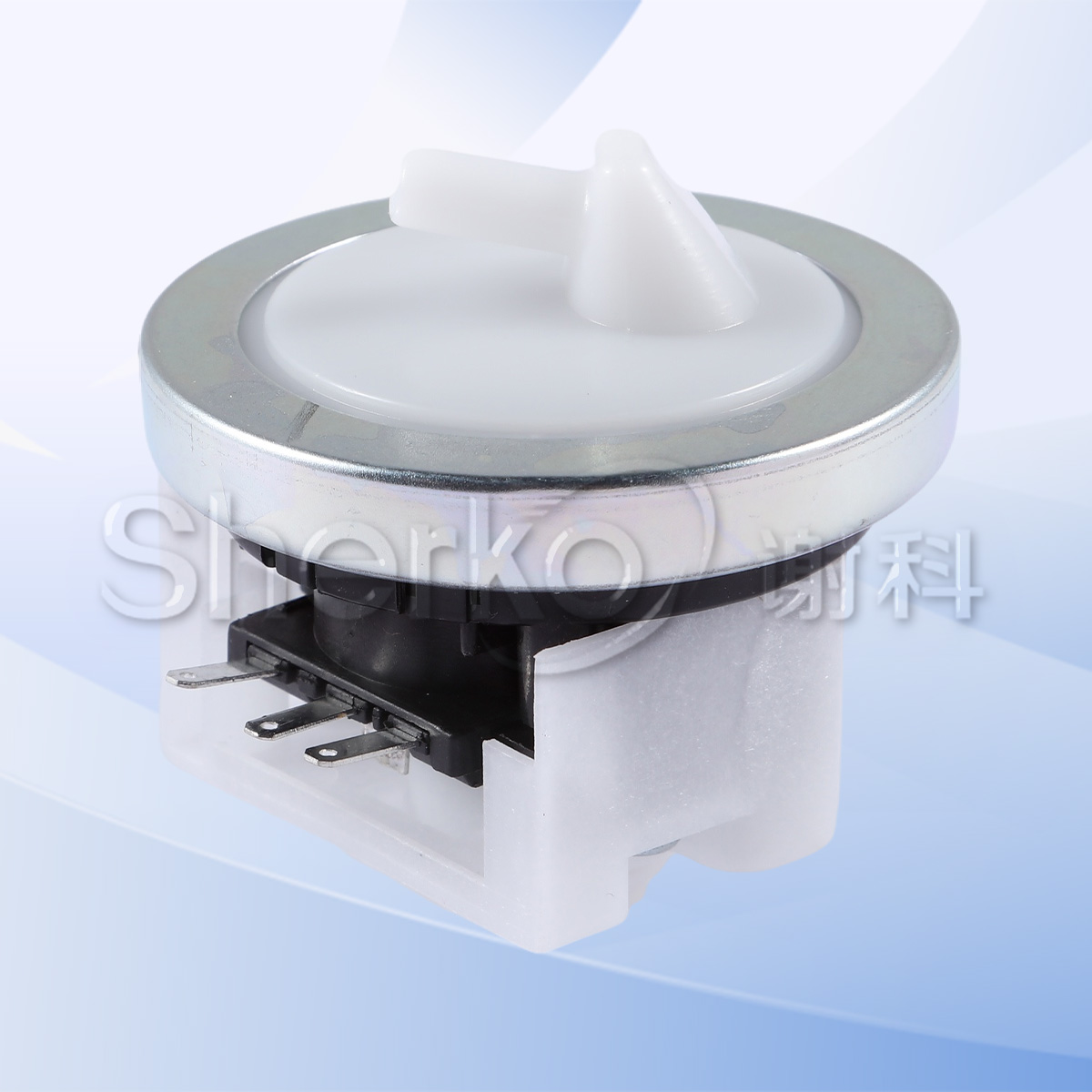

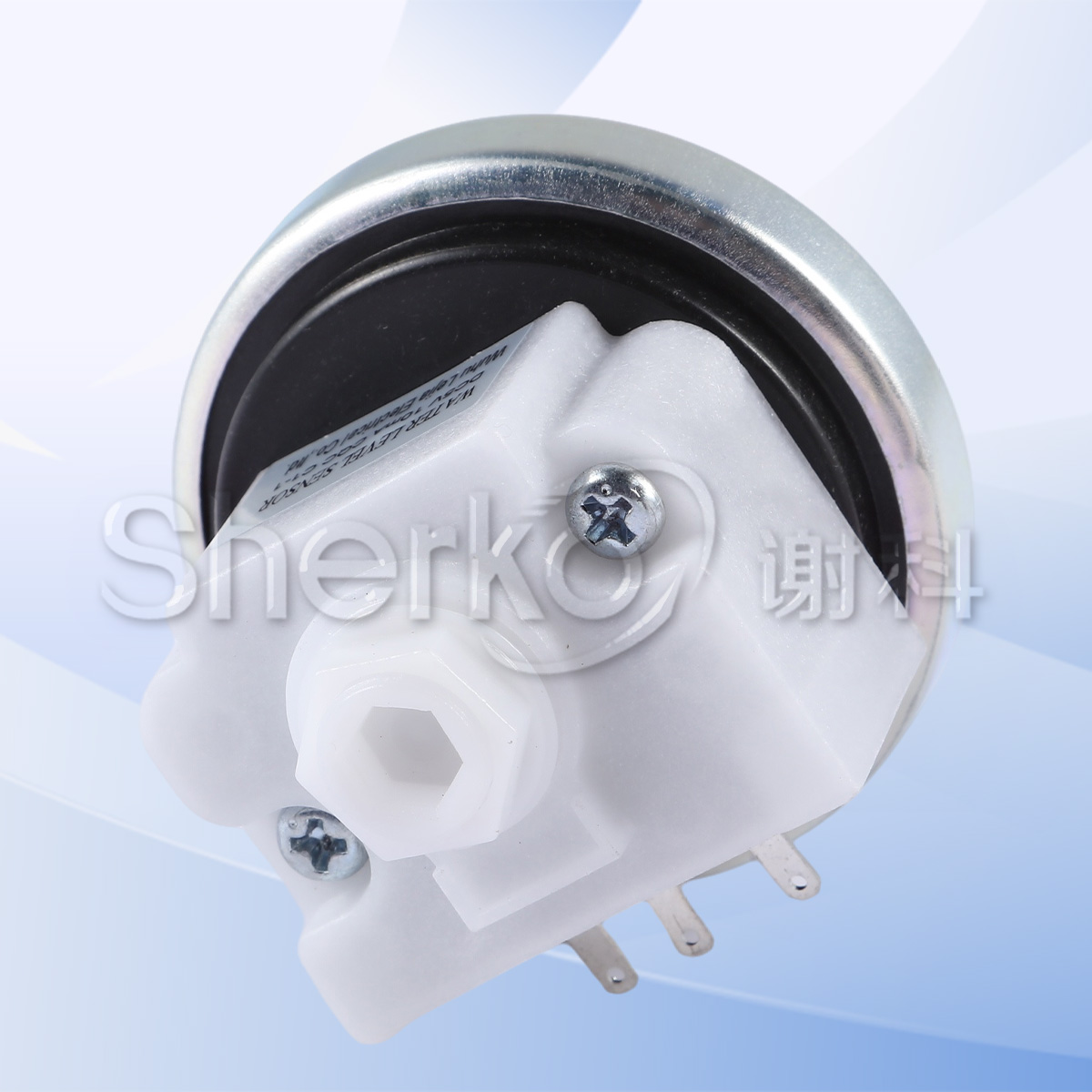

Type	Three-plug water level sensor
Character	Double capacitor Three-plug
Structural description	Without mounting bracket
Operating Voltage	DC5V
Environment	-10℃-50℃
Water level range	0-600mm Water column

Technical parameters

1. Smooth appearance, uniform color

2. Nominal voltage ：DC5.0±0.1V

3. Water level：customizable

4. Inlet strength：Apply force 49N/min, no air leakage

5. Air impermeability：Apply water pressure of 7.5kpa for 1min without air leakage

6. Destructive water pressure ：≥ 1000nm

7. Voltage withstandatility：Apply 1500V/ sec, no breakdown

8. Insulation resistance：>20 megohm

9. Durability test：Each minute 20 times, the water level in 550mm action 50000 times, the water level changes in the 15mm below

10. The experiment of damp and hot: Apply 1200 v/min, no breakdown under the condition of 40±3℃ and 95% relative humidity for 48 hours

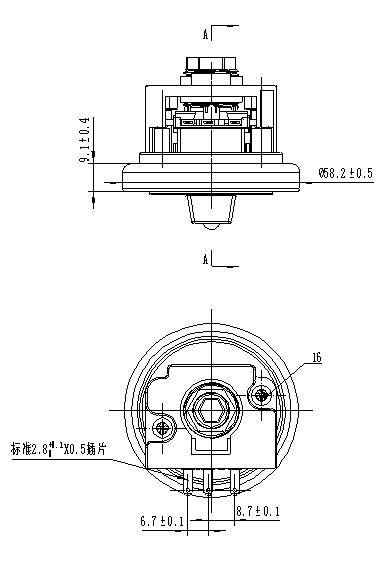

Installation dimension
