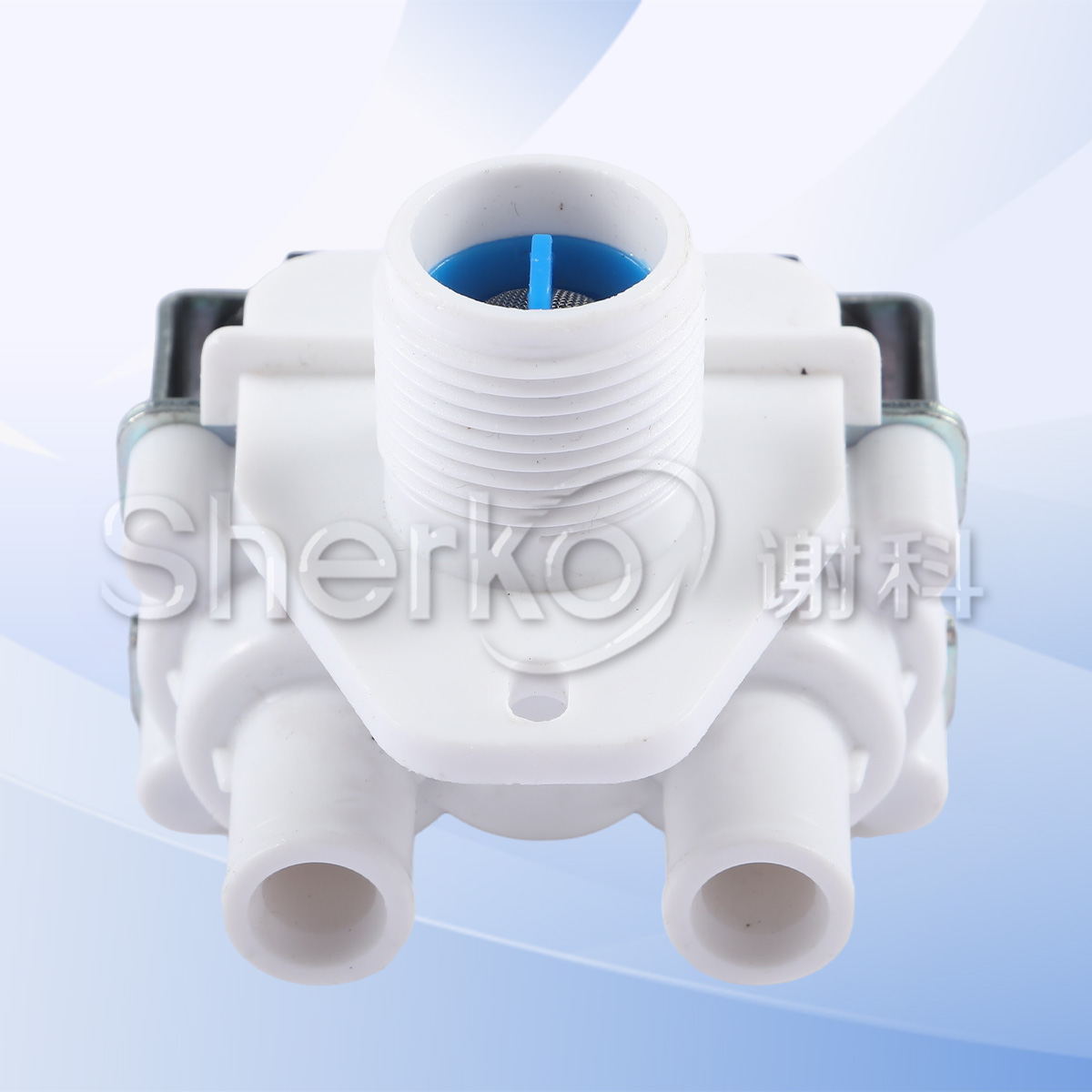

FCS180A

  • FCS180A
  • FCS180A
  • FCS180A
  • FCS180A
  • FCS180A
FCS180A close left right
产品介绍

Type

FCS180A  Double Valve Series

Operating Voltage

AC220-240V 50/60Hz


AC100-110V 50/60Hz

Applicable Fluid

Water  1-85℃

Standard Flow

3-25L/min Customizabl (large flow)


0.2-7L/min Customizable ( small flow )

Water pressure

0.02-1.0Mpa


Technical parameters

1. Smooth appearance, uniform color, fastness

2.  Nominal voltage :220V  50Hz  :Customizable

3.  Rated current : 27±5mA

4. Insulation grade : E grade

5. Apply pressure : 0.02-1.0MPa

6. Maximum resistance to water pressure: Less than 2.0MPa, no leakage after 10min

7. Flow requirements :  ( Customizable )


Water pressure (MPa)

0.02

0.5

0.8

Max

Flow (L/min)

>3

>12

>21

<25



8. Coil resistance : 4.7±0.3KΩ

9. The service life not less than 30000 times, at room temperature, power on for 5 seconds at rated voltage, and power off for another 5 seconds is one cycle :(1) at 0.02MPa, 50000 times;(2) at 0.3mpa, 20000 times;(3) at 0.8mpa, 5000 times

10. The coil should not be burnt out after 8 hours of continuous electrification.
